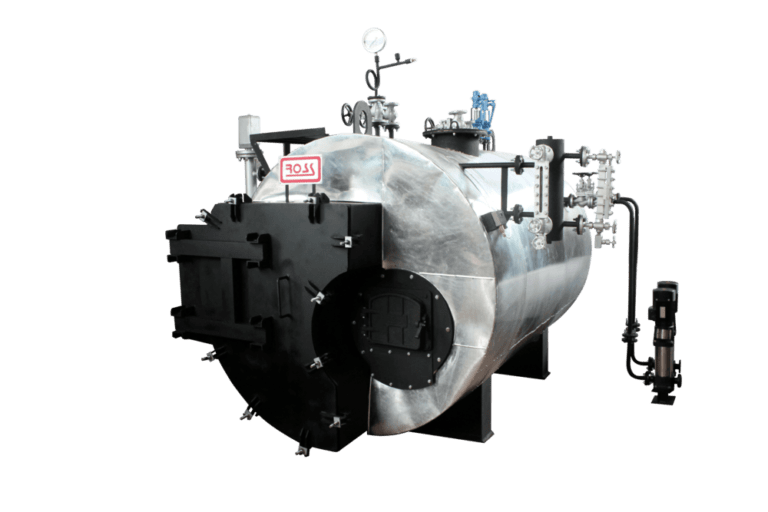

RSW – Solid Fuel Fired, 3 Pass, Shell Type, Flue Tube Steam Boilers
The RS series of steam boilers manufactured by us are 3 pass conventional wet back design shell type steam boilers. These are manufactured as per stringent Indian Boiler Regulations (IBR).
These boilers are available in steam output capacities starting from 1TPH to 10TPH. Standard boilers are designed for working pressure of 10.5Kgs/cm2. These boilers can be supplied for pressures upto 17.5 Kgs/cm2. These are supplied as skid mounted units ready for installation.
The robust design and construction of these boilers ensures long service life. Units are supplied with two stage or fully modulating burners as per the oil firing capacity. The RS series of steam boilers have a large steam space and ample evaporation surface for good quality dry steam. They are supplied with a standby feed water pump as a standard accessory.
These units are ideally used for heavy duty installations, where steam demand is high.
Salient Features of the RS – Oil/Gas Fired, 3 Pass, Shell Type, Flue Tube Steam Boilers are
- Robust design, with ample evaporation surface for dry steam
- Easy to maintain and service
- Smoke tubes are easily accessible for maintenance.
- Ideal choice for users with high steam demand.
- Choice of fuels: Light oil , Natural Gas, LPG, or dual fuel options.
Specifications
| Model | Capacity (kg/hr) |
| RS 01 | 1000 |
| RS 02 | 2000 |
| RS 03 | 3000 |
| RS 04 | 4000 |
| RS 05 | 5000 |
| RS 06 | 6000 |
| RS 08 | 8000 |
| RS 10 | 10000 |
Agro Industries
Ross steam boilers are extensively used for heating in almost all types of agro industries. Common application examples are as below.
- Steam Boilers are used for extraction of essential oils (e.g Citronela grass) from agro products.
- Steam boilers are used for steam distillation process, in extraction of aromas, flavours and perfumes.
- They are used for soil sterilization in greenhouses.
- Steam boilers are used for mushroom cultivation and mushroom processing, mushroom sterilization & Mushroom Seeds processing.
- Steam boilers are used in horticulture to maintain the humidity and temperature inside the greenhouse.
- Steam boilers are used for making cattle feed.
Chemical & Petrochemical Industry
Ross steam boilers are used since decades in various chemical, petrochemical industries. The common uses are as below.
- Steam boilers are used in manufacturing of adhesives, solvents dyes and various other chemicals.
- Steam boilers are used for jacketed heating & various process applications in the chemical industry.
- Super heated steam for micro pulverising of carbon black particles .
- Steam boilers are used in the fertilizer industry for various process heating.
- Steam boilers are used for curing rubber parts in an autoclave.
Food & Beverages
- Steam boilers are used for large scale steaming of noodles.
- Steam boilers for meat processing, and in fishery industry.
- Steam boilers are used in Jacketted kettles for manufacturing of jams, sauce, and a variety of other food products.
- Steam boilers for steam curing of dough & crust formation in bakeries.
Laundry & Dry Cleaning
Steam boilers for washing clothes in washing machines and steam is used for steam ironing.
Textile
Steam boilers for steam processes in steam stenters in textile industries.
Concrete Blocks Curing
Ross steam boilers are used for curing of concrete cement blocks. The use of steam for curing enables faster curing of cement blocks. The quality of cement bricks also improves.
Dairy
Steam boilers for manufacturing of ghee . Heating in spray drying for manufacturing of milk powder. For CIP cleaning and manufacturing of by products like Condensed milk, Khowa etc.
Drugs & Pharmaceuticals
Steam boilers for sterlisation & process applications in heating and manufacturing of pharmaceuticals and various drugs.
Batteries
Steam boilers are used for drying of battery plates & for component surface treatment.
Coir
Steam boilers are used for heating air through radiators in drying applications for manufacturing of Coir products like coir matresses.
Engineering
Steam boilers are used for heating tanks for pretreatment of metal components before painting.
Educational Institutes
Steam boilers are used for training in educational institutes for product training and demonstration in labs.
Electric Cables
Steam boilers for cable manufacturing (curing)
Hotels, Hospitals
Steam boilers are extensively used for laundry and for heating cooking kettles.
Leather
Steam boilers are used in leather processing industries for heating rollers & for process applications.
Paper/ Packaging/ Plywood/ Thermocole
Steam boilers for thermocole, plywood and paper manufacturing.
Research & Development
Small steam boilers are used in R & D labs for a variety of research applications
Tea/ Tobacco/ Timber/ Wood/ Toys/ Wool/ Silk
For drying applications/ metal pretreatment process applications
Disclaimer
The above clip shows design and working of the equipment. All items shown may not be in standard scope of supply.Please refer to the offer for specific scope of supply. We reserve the right to incorporate our latest design and material changes without any notice or obligation.
